Commercial and Industrial Fluid Coils

Water, Glycol, and Special Coils

Fluid coils are available for chilled water, hot water, glycol and special fluid applications.

W Coils – Standard Fluid Coils - Standard water coils typically consisting of multiple rows and circuits.

P Coils – Pitched Core Fluid Coils - Similar to our standard water coils. However, the core on a “P” coil is pitched within the casing and auxiliary drain headers are used to ensure fast and complete drainage of the coil.

J, X, and K Coils – Fluid Coils with Cleanable Tube Plugs - Featuring brass end caps on tube ends that allow access to the interior of the coil for cleaning. These coils are typically applied in environments where sediment or foreign materials may accumulate within the coil.

Q, Y, and R Coils – Fluid Coils with Removable Box Header - The removable box is ideal for high-sediment fluid environments, such as river or lake water. Removing the headers exposes all of the tubes for easy inspection or cleaning.

Split Core Coils – Fluid Coils Manufactured in Multiple Sections to Ease Install - Optional feature that allows nearly any Marlo coil to be divided into smaller sections to ease installation in limited space applications. The coil is split in the core area with divider plates and re-assembled on-site.

Videos

HTML

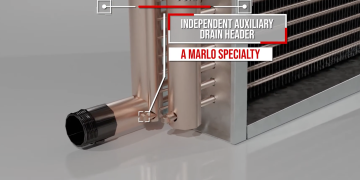

Marlo Heat Transfer Solutions Chilled and Hot Water Coils

Leonardo DRS – Marlo Heat Transfer Solutions offers the “W” and “P” coils. “W” coils are standard hot and chilled water coils. “P” coils are hot and chilled water coils that are in pitched casings and have auxiliary drain headers to improve draining the coil.

Watch Video

Industrial Cleanable Coils with Removable Plugs

Marlo Heat Transfer Solutions offers engineered to order fin and tube heat exchangers for industrial applications. J, K, X hot water, chilled water and special fluid coils have removable plugs instead of traditional return bends. The plugs can be removed to clean the inside of the heat exchanger tubes to restore them to like new performance. These coils are popular wherever fluids with sediment, or other contaminants are present and routine cleaning is required to keep the system working at peak performance. These coils can be ASME Section VIII U stamped. In addition, they can be used at higher operating pressures than our Q, Y, & R coils.

Watch Video

Industrial Cleanable Coils with Box Headers

Marlo Heat Transfer Solutions offers engineered to order fin and tube heat exchangers for industrial applications. Q, Y, R hot water, chilled water and special fluid coils have removable box headers instead of traditional return bends. The box headers can be removed to clean the inside of the heat exchanger tubes to restore them to like new performance. These coils are popular wherever fluids with sediment, or other contaminants are present and routine cleaning is required to keep the system working at peak performance.

Watch Video

Marlo Heat Transfer Solutions Split Core Coils

Marlo Heat Transfer Solutions offers Chilled and Hot Water Coils with split cores for ease of installation and replacement. All Marlo “W” coils can be made with more than one core to allow for the coil to fit into tight spaces. The cores are bolted together during the installation process to allow for much easier installation. No more tearing down walls, or cutting holes in buildings to replace a coil that no longer performs.

Watch Video

S & V Steam Coils

Marlo Heat Transfer Solutions offers engineered to order straight through steam coils for heating applications in your Air Handler, or Industrial process. The versatile straight through construction can be used in horizontal applications, or vertical applications. “S” coils feature 5/8” tubes and “V” coils feature 1” tubes on 2.25” centers (tighter than industry standards for more performance in a smaller package). “S” and “V” coils are available in a wide range of materials and constructions. Our Quick Ship program guarantees shipment in as little as 5 days from order placement (certain restrictions apply).

Watch Video

1” and 5/8” Distributing Steam Coils

Marlo Heat Transfer Solutions offers the “D” and “H” distributing steam coils. “D” coils are standard steam coils with distributing steam tubes within 5/8” condensate return tubes. These are sometimes referred to as Freeze Proof coils due to their resistance to freezing when used in temperatures below 32F. “H” coils are built the same way, except they use 1” condensate return tubes.

Watch Video

DX and Ammonia Cooling Coils

Marlo Heat Transfer Solutions offers engineered to order refrigerant coils for commercial and industrial applications. Our DX and flooded evaporator coils are used in Air Handlers, process air equipment, refrigeration equipment, tunnel coolers and other two phase refrigerant applications where high performance and durability are needed.

Watch Video

Replaceable Coil Module for Air Handlers and Fan Coil Assemblies

Marlo Heat Transfer Solutions offers engineered to order Replaceable Coil Modules for your aging or worn out Air Handling Unit (AHU) or Fan Coil Assembly. The unit features Galvanized Steel Housings that drop into your existing Air Handler and replace your Cooling Coil or DX Coil section to extend the longevity of your otherwise fully functional AHU. The RCM’s feature galvanized steel, or stainless steel drain pans that meet IAQ slope requirements to comply with AHRAE and AHRI clean air standards.

Watch Video

Marlo Heat Transfer Solutions Airtight Coil

Marlo Heat Transfer Solutions offers the airtight coil for demanding industrial process heating and cooling needs. The airtight housing can accept steam, hot and chilled water and DX coils. The housing is fully welded to prevent inside process air and outside air from coming into contact with each other.

Watch Video

Marlo Heat Transfer Solutions Humidity Control Coils or HCC Coils

Marlo Heat Transfer Solutions Humidity Control Coils for use in hospitals, data centers and laboratories where modest reheat is required to control humidity. The HCC coil uses the warm return water from a chilled water coil to reheat the air as it exits the coil.

Watch Video
